| ブランド名: | Mckee Charging Cube |
| モデル番号: | CLF-DC-960kW |
| MOQ: | 1 |
| 価格: | Negotiate |
| パッケージの詳細: | 木製のケースパッケージ |
| 支払条件: | L/C、D/A、D/P、T/T、Western Union、MoneyGram |

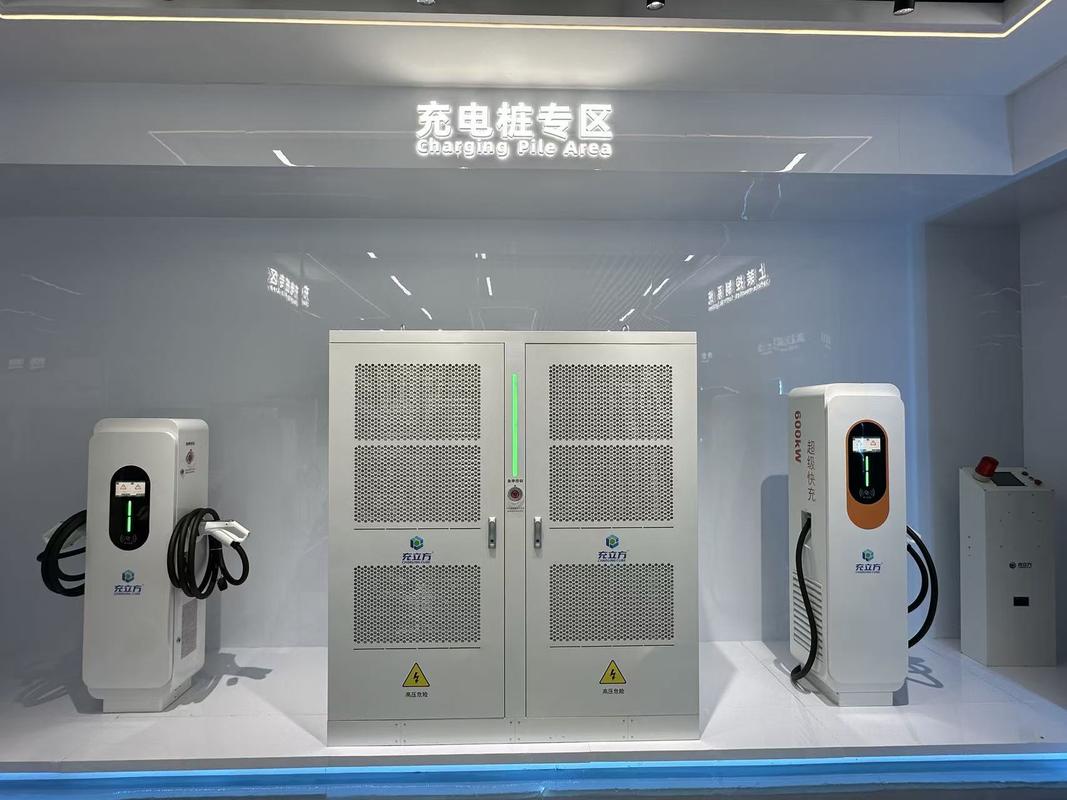

EV Charger Factory Customized Split Charging Station 960kW
| Flexible Shared Charging Stack | |||
| 250A/600A/480-600-720-800-960KW/Parameter | |||
| Electric Current | 250A/600A | Input Voltage | 327V-456Vac |
|
Power |
Complete machine(0-2400A), Single circuit(0-25A), Super - charging(0-600A) |
Output Voltage |
50V-1000V |
| Waterproof Level | IP54 | Input Frequency | 45Hz-65Hz |
| Work-Temperature | -30~85℃(Derated output when the temperature is above 50 degrees) | Power Factor |
≧0.99 |
| Operating Humidity | 5%-95%(No frost condensation) | Peak Efficiency | ≧95.5% |
| Elevation | ≦2000M | Output table Routes | Max12(Compatible6/8/10) |
|
Function |
Short circuit , Leakage, Overcurrent,Emergency Stop |
Material Quality |
PC Flame retardant |
|
Usage |
Rfid card/Swipe card/GPRS/RS485/CAN/Ethernet |
Line Length |
5M/10M |
| Network Connection |
OCPP1.6 protocol |
Main Unit Dimensons |
Length/Width/Height: 1355*995*2000M M |
|
Packaging |
Wooden Case |
Terminal Dimensions |
Length/Width/Height: 325*450*1430M M |
